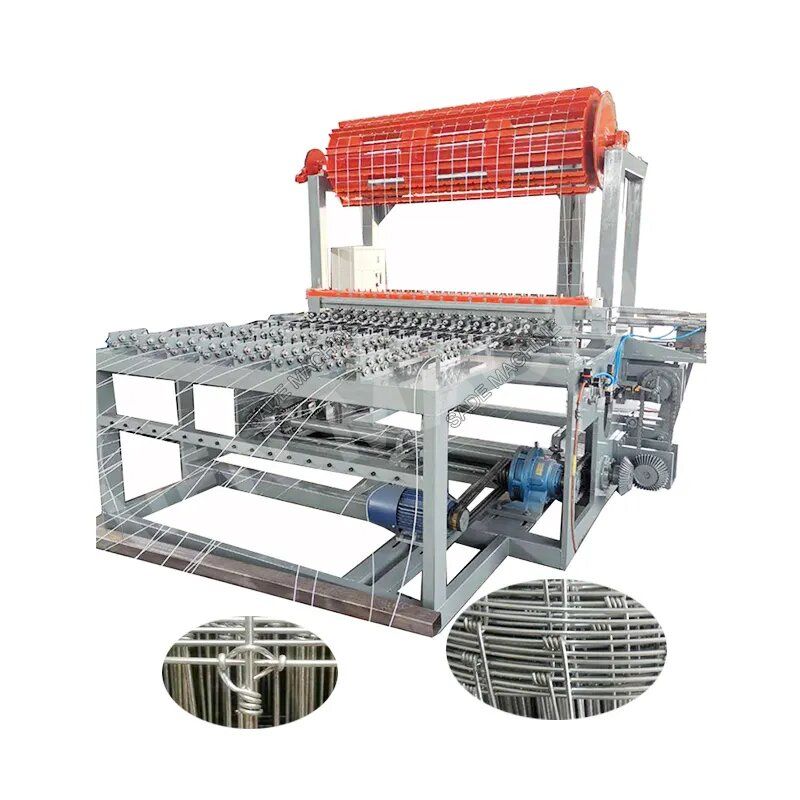

Grassland Fence Machine also called field fence machine, cattle fence machine. The machine use for weaving hinge joint grass land fence. The grass land fence machine could be automatic weaving wrap wire and weft wire. We have spent a lot of time to develop the machine, it has independent intellectual property rights and self-made.
Material:
Hot dip galvanized wire, galvanized wire, stainless steel wire.
Our Advantage:
1. Straightening rollers are specially designed for hard wire.
2. Twisted head is made of hardened mold steel (HRC28), long service life.
3. Every cross wire is equipped with one push rod, more powerful.
4. Pneumatic twisting and cutting, speed faster, high output power.
5. it takes new advanced Inverter ,speed adjustable as your request
6. Mesh roller is strong, easy to install and take off.
Parameter
Netting Width网宽 | 1422mm | 1880mm | 2000mm | 2400mm |
motor 电机功率 | 5.5kw | 7.5kw | 7.5kw | 11kw |
Dimension 尺寸 | 2.8*3.2*2.4(m) | 3.3*3.2*2.4(m) | 3.4*3.2*2.4(m) | 3.9*3.4*2.4(m) |
Efficiency 效率 | ≤45row/min | ≤45row/min | ≤45row/min | ≤45row/min |
Twine diameter 主丝径 | 1.9-2.5(mm) | 1.9-2.5(mm) | 1.9-2.5(mm) | 1.9-2.5(mm) |
Side wire diameter 拧丝丝径 | 2.0-3.5(mm) | 2.0-3.5(mm) | 2.0-3.5(mm) | 2.0-3.5(mm) |
Voltage 电压 | 380v | 380v | 380v | 380v |
Weight 重量 | 3.5T | 3.8T | 4.0T | 4.5T |
Warp number 经丝数量 | 11 | 13 | 18 | 23 |
Minimum weft opening number 最小纬孔数量 | 2 | 4 | 4 | 6 |
Weftnumber 纬丝数量 | 10 | 12 | 17 | 22 |
Productivity 产能 | 21600row/day (150m/h) | |||
