Hexagonal wire mesh machine

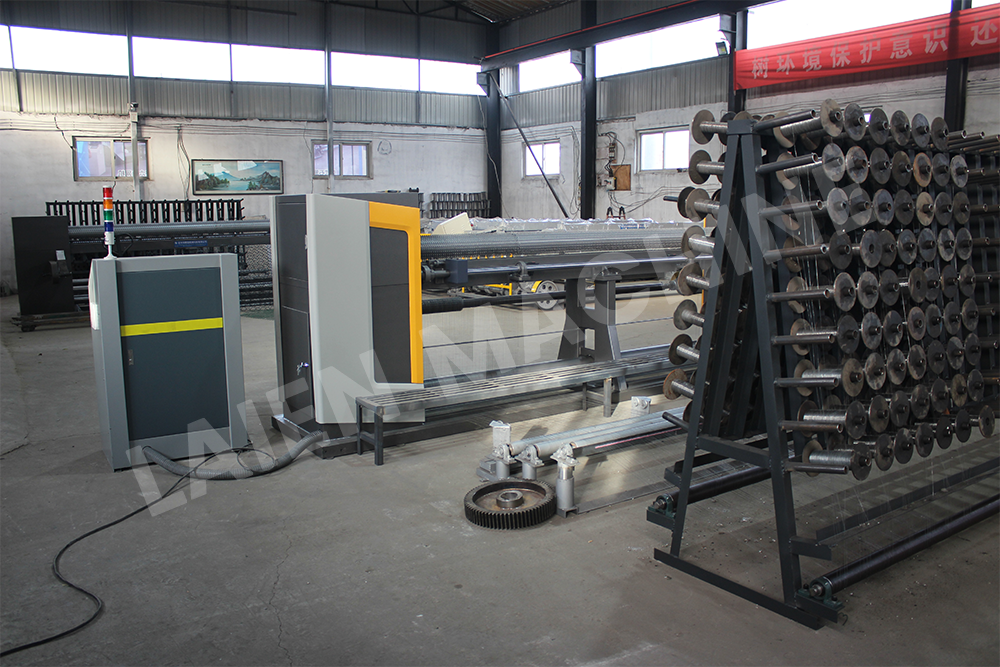

Hexagonal wire mesh machine is an automated equipment specially designed for weaving hexagonal metal mesh, commonly used in gabion mesh, poultry cages, and protective fencing. With advanced control systems and weaving technology, the machine ensures stable and efficient production of various mesh specifications. It is widely applied in agriculture, construction reinforcement, slope protection, and hydraulic engineering. Key advantages include high weaving speed, uniform mesh size, easy operation, and low maintenance cost, making it an ideal choice for mesh manufacturers.

Inquire Now Next Product

Parameter

Model型号	Wire diameter丝径范围(mm)	Hole size网孔(mm)	Max mesh width 最大网宽(mm)	Output 产能		Dimensions 尺寸(LXWXH) mm	Weight重量(T)
Model型号	Wire diameter丝径范围(mm)	Hole size网孔(mm)	Max mesh width 最大网宽(mm)	Mesh/min	m/h	Dimensions 尺寸(LXWXH) mm	Weight重量(T)
ZJ1/2	0.4-8	16	3300/2600	80	70-80	4500x2200x1450	4.6
ZJ3/4	0.38-0.9	20	3300/2600	70-75	105-112	4500x2200x1450	4.6
ZJ1	0.38-1.2	28	3300/2600	70	126	4500x2200x1450	4.6
ZJ1.2	0.45-1.5	32	3300/2600	60-70	162-189	4500x2200x1450	4.6
ZJ1.5	0.5-1.5	40	3300/2600	60-70	189	4500x2200x1450	4.6
ZJ2	0.7-2.2	57	3300/2600	60	70-80	4500x2200x1450	4.6
ZJ3	0.7-2.5	86	3300/2600	50	105-112	4500x2200x1450	4.6
