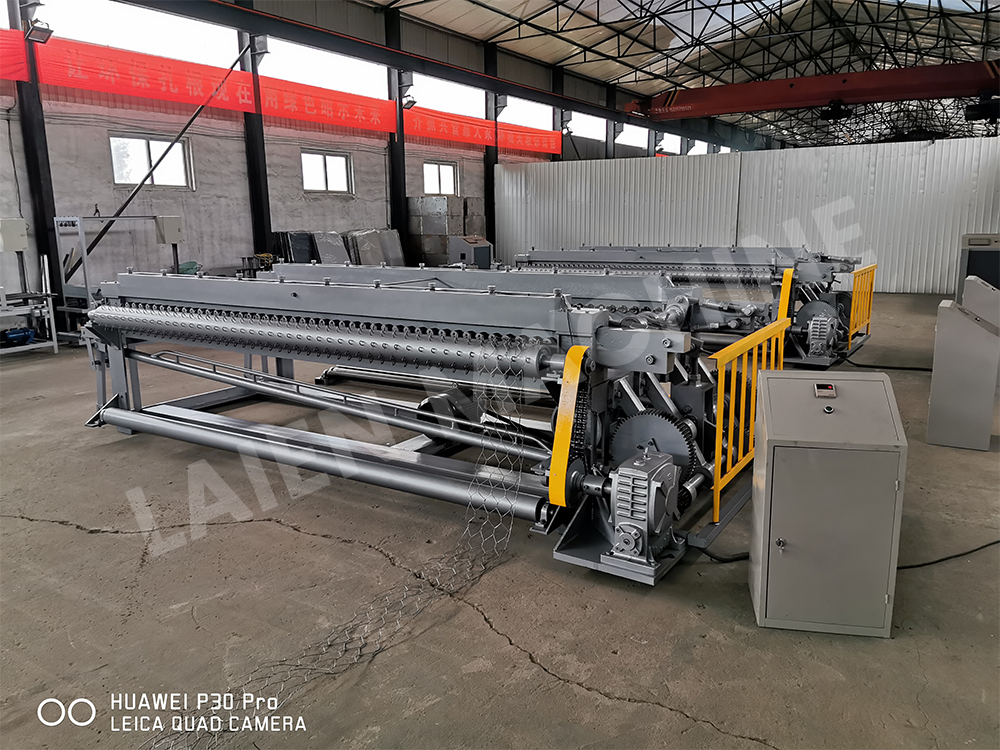

The Horizontal Gabion Mesh Machine is a specialized equipment designed for the production of gabion mesh, widely used in construction, environmental protection, and road construction industries. Gabion mesh is commonly applied in hydraulic engineering, slope protection, retaining walls, and riverbank protection projects due to its excellent protective and stabilizing properties. This machine uses a horizontal weaving process, automatically weaving steel wires into mesh grids, with adjustable grid spacing to meet different requirements, enabling efficient production of gabion mesh to specification.
Features:
l High efficiency: Automated weaving process to improve production efficiency.
l Flexible adjustment: Allows adjustment of grid size and wire thickness according to customer requirements.
l Strong stability: Durable and suitable for harsh working environments.
l Easy operation: High automation reduces manual intervention.
Parameter
Name 名称
| Horizontal type hexagonal wire mesh machine 卧式石笼网机
| ||
Wire Diameter 丝径(mm)
| 1.2-3.0
| ||
Mesh Size网孔尺寸(mm)
| 50x70,60x80,70x90,80x100，90x110，100x120,110x130
| ||
Mesh Width 网宽(m)
| 2.5(2x1.2)
| 3(2x1.5)
| 4(2x2)
|
Motor电机功率(kw)
| 7.5
| 11
| 11
|
Overall size 尺寸(m)
| 4.5*2.3*1.3m
| 5.3*2.3*13m
| 6.5*2.3*1.3m |
