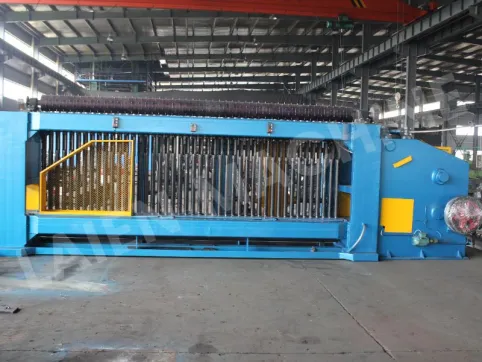

Gabion Mesh Machine

Gabion mesh machine is a specialized equipment used for producing hexagonal wire mesh (commonly known as gabion mesh, reinforced mesh, or Reno mattress). This machine can automatically complete processes such as wire coiling, weaving, cutting, and edge binding. It is widely used in hydraulic engineering, highway and railway protection, slope stabilization, and ecological riverbank construction. Gabion mesh is known for its high strength, corrosion resistance, and long service life, making it an ideal solution for erosion control and environmental protection.

Inquire Now Next Product

Parameter

Model	Wire Diameter (mm)	Mesh Size (mm)	Width (mm)	Twist (r)	Power of Motor (kW)	Output (m/h)	Dimensions (L×W×H mm)	Weight (T)
LE3300A	1.8–3.2	60×80	3300	3	15	165	6200×1400×2400	14
LE3300B	1.8–4.0	80×100		3		200
LE3300C	1.8–4.0	100×120		3		225
LE3300D	1.8–4.2	120×150		3		255
LE4300A	1.8–3.2	60×80	4300	3	20	165	7200×1400×2400	15
LE4300B	1.8–4.0	80×100		3		200
LE4300C	1.8–4.0	100×120		3		225
LE4300D	1.8–4.2	120×150		3		255
LE5300A	1.8–3.2	60×80	5300	5	32	165	8200×1400×2400	17
LE5300B	1.8–4.0	80×100		5		200
LE5300C	1.8–4.0	100×120		5		225
LE5300D	1.8–4.2	120×150		5		225
